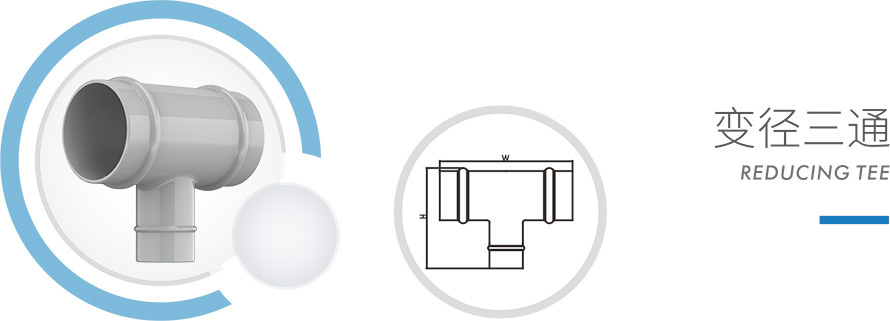

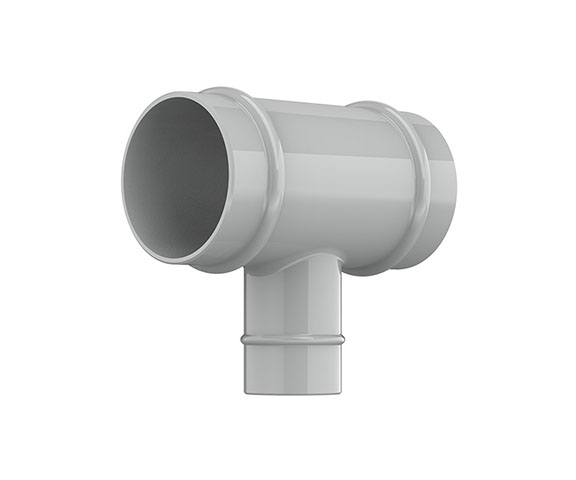

- 产品名称：异径三通
- 所属分类：三通
- 立即联系
- 详细介绍
| 产品型号 | 公称通径mm | Wmm | Hmm |
| 21 0501 00 | DN25-DN20 | 154 | 102.5 |
| 42 0501 00 | DN40-DN25 | 135 | 105 |
| 54 0501 00 | DN50-DN40 | 160 | 105 |
| 64 0501 00 | DN63-DN40 | 160 | 138 |
| 65 0501 00 | DN63-DN50 | 160 | 138 |
| 74 0501 00 | DN80-DN40 | 160 | 154 |
| 75 0501 00 | DN80-DN50 | 160 | 154 |
| 76 0501 00 | DN80-DN65 | 200 | 154 |
| 84 0501 00 | DN100-DN40 | 160 | 173 |
| 85 0501 00 | DN100-DN50 | 160 | 173 |
| 86 0501 00 | DN100-DN65 | 200 | 173 |
| 87 0501 00 | DN100-DN80 | 220 | 173 |
| 94 0501 00 | DN125-DN40 | 160 | 197 |
| 95 0501 00 | DN125-DN50 | 160 | 197 |
| 96 0501 00 | DN125-DN65 | 200 | 197 |
| 97 0501 00 | DN125-DN80 | 220 | 197 |
| 98 0501 00 | DN125-DN100 | 235 | 197 |
| A4 0501 00 | DN150-DN40 | 160 | 228 |
| A5 0501 00 | DN150-DN50 | 160 | 228 |
| A6 0501 00 | DN150-DN65 | 200 | 228 |
| A7 0501 00 | DN150-DN80 | 220 | 228 |
| A8 0501 00 | DN150-DN100 | 235 | 228 |
| A9 0501 00 | DN150-DN125 | 260 | 228 |
| B4 0501 00 | DN200-DN40 | 160 | 280 |
| B5 0501 00 | DN200-DN50 | 160 | 280 |
| B6 0501 00 | DN200-DN65 | 200 | 280 |
| B7 0501 00 | DN200-DN80 | 220 | 280 |
| B8 0501 00 | DN200-DN100 | 235 | 280 |
| B9 0501 00 | DN200-DN125 | 260 | 280 |
| BA 0501 00 | DN200-DN200 | 295 | 280 |
| *以上所有接头需另配同等径直接 | |||
